Apple M3 vs. M4 Chip Comparison: Performance, Features & Device Compatibility

Why Trust Techopedia

Apple’s silicon evolution continues to impress, with the M4 chip’s introduction in the iPad Pro marking a significant shift from the tradition of new chips debuting in Macs.

This move has sparked ongoing interest in the Apple M3 vs. M4 comparison, especially as the M3 continues to power the current Mac lineup.

As we delve into the M3 vs. M4 chip face-off, we’ll explore the key differences, performance implications, and what this means for Apple’s ecosystem.

Key Takeaways

  • M4’s debut in iPad Pro signals a shift in Apple’s product strategy.
  • Increased CPU core count in M4 (9 or 10) compared to M3’s 8 cores.
  • M4’s Neural Engine is capable of 38 TOPS vs. M3’s 18 TOPS.
  • The new dedicated display engine in M4 offers enhanced visual capabilities.
  • Real-world Apple M4 vs M3 performance differences become clearer.

M3 vs. M4: Specs Comparison

The Apple M3 vs. M4 comparison reveals both similarities and significant differences in their architectural design. Both chips represent Apple’s commitment to pushing the boundaries of M4 vs. M3 Apple silicon performance. Let’s break down the key specifications:

Specification Apple M3 Apple M4
Manufacturing Process 3nm (1st generation) 3nm (2nd generation)
CPU Cores 8 (4 performance, 4 efficiency) 9 or 10 (3 or 4 performance, 6 efficiency)
GPU Cores 10 10
Neural Engine 16-core, 18 TOPS 16-core, 38 TOPS
Memory Bandwidth 100 GB/s 120 GB/s
Transistor Count 25 billion 28 billion

The Apple M3 vs. M4 comparison highlights several key advancements:

  1. Manufacturing Process: While both chips use a 3nm process, the M4 benefits from second-generation refinements, offering improved efficiency.
  2. CPU Configuration: The M4 increases the total core count, with a focus on efficiency cores. This could lead to better multitasking and power efficiency in everyday tasks.
  3. Neural Engine: Despite maintaining the 16-core design, the M4’s Neural Engine sees a dramatic increase in processing capability, more than doubling the M3’s performance.
  4. Memory Bandwidth: The M4 offers a 20% increase in memory bandwidth, which could translate to faster data access and improved overall system responsiveness.

These specifications show the evolutionary nature of M4 vs. M3 Apple Silicon, with Apple focusing on targeted improvements rather than a complete overhaul.

Advertisements

The increased CPU core count and significantly enhanced Neural Engine capabilities stand out as the most substantial changes, potentially offering notable performance gains in specific scenarios.

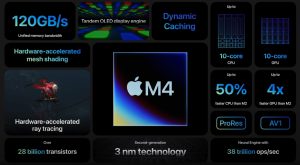

Apple M4 chip characteristics
Apple M4 chip characteristics. Source: Apple

Performance Comparison

When it comes to Apple M3 vs. M4 performance, the architectural differences and enhancements offer intriguing insights into potential real-world capabilities.

Let’s delve into the key aspects of performance comparison:

CPU Architecture Differences

The M4’s increased core count, particularly in efficiency cores, suggests a focus on improved multitasking and power efficiency.

While the M3 balances performance and efficiency with its 4+4 core configuration, the M4’s 3+6 or 4+6 setup could potentially offer smoother background task handling and enhanced battery life for everyday tasks.

Processing Power Expectations

Based on the core count increase and refined 3nm process, the M4 has a modest boost in raw processing power.

However, the Apple M3 vs. M4 performance gap may not be as pronounced in single-core tasks.

The M4 shines brightest in multi-core performance, especially in scenarios that can leverage the additional efficiency cores.

Apple M4 processing performance
Apple M4 processing performance. Source: Apple

Theoretical AI & Machine Learning Capabilities

The most significant leap in Apple M3 vs. M4 performance appears to be in the realm of AI and machine learning.

With the Neural Engine’s capabilities more than doubling from 18 TOPS to 38 TOPS, the M4 is poised to excel in tasks like image processing, natural language processing, and on-device machine learning models.

This enhancement translates to faster and more efficient AI-driven features across the operating system and third-party applications.

Caveats About Limited Real-World Data

It’s crucial to note that while specifications and theoretical capabilities provide valuable insights, real-world performance can often differ.

As of now, comprehensive M3 vs M4 Apple benchmark data is still emerging. Initial benchmarks suggest performance improvements, but the full extent of these gains across various applications and workloads is still being discovered.

Some important considerations:

  1. Thermal Design: The M4’s debut in the iPad Pro means its performance characteristics may differ when implemented in future Mac devices with different cooling solutions.
  2. Software Optimization: As developers continue to optimize their applications for the M4, we may see performance improvements over time that aren’t immediately apparent in early benchmarks.
  3. Task-Specific Performance: While overall performance might see incremental improvements, certain tasks leveraging the enhanced Neural Engine should see more significant gains.

As more devices featuring the M4 chip become available and undergo thorough testing, we’ll gain a clearer picture of the real-world Apple M3 vs. M4 performance differences.

For now, the M4 appears to offer a refined evolution of the M3’s capabilities, with a particular emphasis on AI and machine learning tasks, promising exciting possibilities for future applications and features in Apple’s ecosystem.

Graphics & Gaming Potential

When examining the Apple M3 vs. M4 differences in graphics capabilities, we find both similarities and subtle enhancements.

Both the M3 and M4 feature a 10-core GPU, maintaining parity in core count. However, the M4’s refined 3nm process offers improved efficiency and higher clock speeds, which translates to better overall graphics performance.

A significant advancement shared by both chips is hardware-accelerated ray tracing and mesh shading. These features, first introduced with the M3, continue in the M4, promising enhanced visual fidelity in compatible games and 3D applications.

While the core GPU architecture remains similar, the M4’s overall system enhancements benefit gaming performance. The increased memory bandwidth (120 GB/s vs 100 GB/s) results in faster texture loading and smoother gameplay, especially in more demanding titles.

Additionally, the M4’s more powerful Neural Engine could potentially be leveraged for AI-enhanced gaming features, such as improved NPC behavior or dynamic resolution scaling.

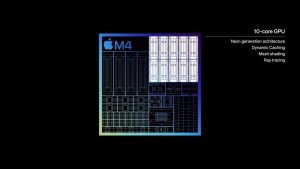

Apple M4 graphics/GPU
Apple M4 graphics/GPU. Source: Apple

Specialized Features

The M4 vs. M3 Apple Silicon comparison reveals significant advancements in specialized hardware features.

Enhanced Neural Engine Capabilities

The M4’s Neural Engine sees a dramatic improvement, capable of 38 trillion operations per second (TOPS) compared to the M3’s 18 TOPS. This substantial increase could lead to faster and more efficient AI and machine learning tasks, benefiting everything from photo and video processing to natural language understanding.

Dedicated Display Engine

One of the most notable additions to the M4 is a dedicated display engine. This new hardware component is designed to drive high-resolution displays more efficiently and support advanced features like Tandem OLED technology.

Optimized for Content Creators

The combination of an enhanced Neural Engine and a dedicated display engine positions the M4 as a powerhouse for content creators. Video editors see faster rendering times, while graphic designers benefit from more responsive performance when working with complex, high-resolution assets. The improved AI capabilities also enhance features like real-time video effects or AI-assisted audio processing.

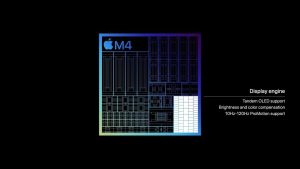

Apple M4 display engine
Apple M4 display engine. Source: Apple

Device Compatibility & Ecosystem

The Apple M3 vs. M4 rollout strategy marks a shift in Apple’s approach to chip deployment across its ecosystem. The M3 family (including M3, M3 Pro, and M3 Max) is currently powering a range of Mac devices, including:

As of now, the M4 chip is exclusively available in the latest iPad Pro models (11-inch and 12.9-inch). This marks the first time a new generation of Apple Silicon debuted in an iPad rather than a Mac.

While Apple hasn’t officially announced M4-powered Macs, industry observers anticipate their arrival. Potential candidates for M4 upgrades include:

The timeline for these releases remains uncertain, but many expect announcements during Apple’s annual events.

The M4’s debut in the iPad Pro suggests that it could offer significant performance improvements on Macs, especially in AI and machine learning tasks.

Power Efficiency & Thermal Considerations

The Apple M3 vs M4 differences in power efficiency and thermal management are crucial factors in overall performance. The M4’s second-generation 3nm process offers improved power efficiency over the M3. This, combined with the increased number of efficiency cores, could lead to better power management, especially during less demanding tasks.

The M4’s debut in the iPad Pro presents an interesting scenario. iPads rely on passive cooling, which could limit the chip’s sustained performance compared to actively cooled Macs. When the M4 eventually comes to Macs, we might see higher sustained performance due to more effective cooling solutions.

When it comes to battery life, The M4’s efficiency improvements and additional low-power cores suggest potential gains, particularly for tasks that don’t require full CPU utilization.

Price & Availability

The pricing strategy for M3 vs. M4 chip devices offers insights into Apple’s positioning of these technologies:

Current Pricing for M3 Devices:

  • MacBook Air (M3): Starting at $1,099
  • MacBook Pro 14-inch (M3): Starting at $1,599
  • iMac 24-inch (M3): Starting at $1,299

M4 iPad Pro Pricing:

  • 11-inch iPad Pro (M4): Starting at $999
  • 12.9-inch iPad Pro (M4): Starting at $1,299

The Bottom Line: A Compelling Upgrade

The Apple M4 vs. M3 comparison reveals an evolutionary step in Apple’s silicon journey, with the M4 offering notable improvements in AI performance and efficiency.

While not a revolutionary leap, the M4’s enhancements in Neural Engine capabilities and power efficiency make it a compelling upgrade, especially for users heavily invested in AI and machine learning tasks.

As we await more comprehensive real-world data and the chip’s implementation in Mac devices, it’s clear that Apple is committed to improving performance and efficiency in its custom silicon designs.

FAQs

What is the difference between Apple M4 and M3 chips?

Is the M4 chip better than the M3?

Which Apple device has M4?
