Data Packet

What is Data Packet?

A data packet is a unit of data formatted into a single package that travels from one device to another along a network path, such as the Internet. Data packets are used in Internet Protocol (IP) transmissions, often part of the TCP/IP suite, for data that travels across the Web and other kinds of networks.

In digital communications, data packets enable the transmission of information by breaking raw data down into smaller, manageable units – or chunks – before they travel along a network from one device to another. When the data packets reach their destination, also known as the endpoint, they are reassembled to make the data readable.

Data packets use various transmission protocols depending on the network and the type of communication. To provide more conventional and consistent data packet transmission across networks, various groups have established standardized transmission protocols.

For example, the International Organization for Standardization (ISO) developed the Open Systems Interconnection (OSI) model, which identifies specific data packet layers and maintains standards for each. These standards form the foundation for the modern use of data packets in diverse network scenarios.

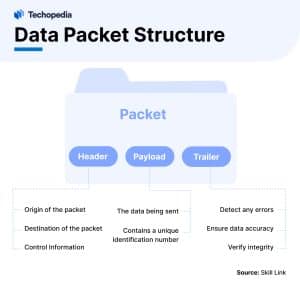

Data Packet Structure

How Data Packet Works

A data packet has other parts besides the data it contains, often referred to as the payload. It includes headers that contain metadata and routing information. For example, in IP data packets, the header contains the source IP address (i.e., its origin) and the destination IP address, which guide the packet during transit.

Additionally, data packets may include trailers, which are error-checking information to ensure data accuracy and integrity during transmission. The payload also includes a unique identification number, or sequence number, that ensures the data is correctly reassembled at the destination.

Data Packets Transmission Elements

Data packets use various transmission protocols that operate at different layers of the OSI model, depending on the network and the type of communication.

For example, when you browse the web using Hypertext Transfer Protocol (HTTP) or HTTPS, information such as a web page is broken down into small data packets that travel across the Internet to the user’s device. The packets are reassembled to display the web page in a web browser.

Other examples of transmission protocols that typically use TCP for data packet transmission include File Transfer Protocol (FTP) for transferring files over a network and Simple Mail Transfer Protocol (SMTP) for sending email data packets across networks.

Another important element of data packet transmission is switching, a phrase used to describe the method used to route data packets from the source to the destination. The Internet and most modern data networks use packet switching as opposed to circuit switching. In packet switching, the packets are transmitted independently across the network, potentially taking different routes to reach the destination.

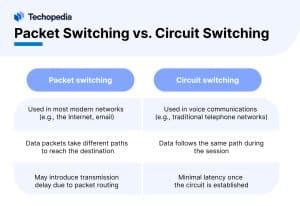

Packet Switching vs. Circuit Switching

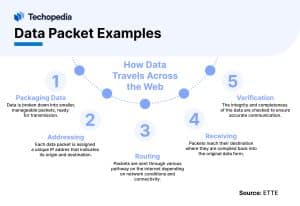

Data Packet Examples

When a user visits a website, the browser splits the request into smaller data packets. These packets are then sent over the Internet through various routers and switches, using packet switching. Once the packets reach the web server, it processes the request and sends the web page data back to the user’s device in a similar packet format. The browser reassembles the data using sequence numbers, checks for errors and displays the webpage.

A virtual private network (VPN) can be used to safeguard an individual’s security and privacy on the Web. When using a reputable VPN service provider, data packets are encrypted before leaving the user’s device. The VPN server then forwards requests to website servers, masking the user’s source IP address, identity, and location.

Another data packet example is email. The email client breaks the message down into smaller data packets – each packet includes parts of the email along with the sender’s IP address, the recipient’s IP address, unique identification numbers, and error-checking information. These data packets are then transmitted over the Internet to the recipient’s email server, where they are reassembled in the correct order to form the complete message.

Data Packet Pros and Cons

The Bottom Line

The data packet definition covers the process of breaking raw data down into smaller, manageable units for transmission along a network path, such as the Internet. When the data packets reach their destination, they are reassembled to make the data readable.

Most modern networks use packet switching during transmission. Packets are transmitted independently across the network via multiple paths to reach the destination. If issues arise, packets are automatically rerouted, improving network congestion. Keep in mind that packet loss can cause errors, and the time needed to send all the data packets and reassemble them can lead to transmission delays.
