What is a Home Area Network (HAN)?

A home area network (HAN) is a simple type of local area network (LAN) designed for use in a residential environment. It may also be referred to as a home network.

Advertisements

What is a Home Area Network HAN Definition & Setup Guide

Key Takeaways

  • A home area network is a type of local area network whose simplified design is intended for residential use.
  • While every home area network is a LAN, not every local area network is a HAN.
  • The core components of a HAN include a router, which acts as the central hub, and a modem, which connects the network to the Internet.
  • HANs are becoming increasingly important because they enable smart home technology.
  • Most HAN devices rely on wireless connectivity for convenience, but wired connections using Ethernet cables offer better stability and faster throughput speeds for bandwidth-intensive activities like gaming or streaming media.

How a Home Area Network Works

To create a home area network, the network administrator (usually the homeowner or primary tenant) must set up a router. If the network is going to connect to the Internet, the administrator also needs to link the router to a modem.

Typically, HAN administrators purchase their own commercial off-the-shelf (COT) router but use a modem provided by the Internet service provider (ISP). The modem converts the ISP’s signals (analog or digital, depending on the type of Internet service) into digital data that can be understood and used by networked devices within the home.

Digital devices within the residence can connect to the router using an 802.11x Wi-Fi protocol or a wired Ethernet connection. To facilitate efficient communication and resource sharing, the router assigns each connected device a unique IP address.

Some ISPs offer modem-router combo devices that integrate both functions into a single unit. While this can simplify network setup, it tends to offer less flexibility.

Home Area Network vs. Local Area Network (LAN)

A home area network is designed for residential use, while a local area network is designed for use in small geographical areas.

While a home area network is technically a type of local area network, there are some key distinctions that set them apart. For example, HANs typically have a very simple architecture because they are designed to be used by family members with varying skill levels.

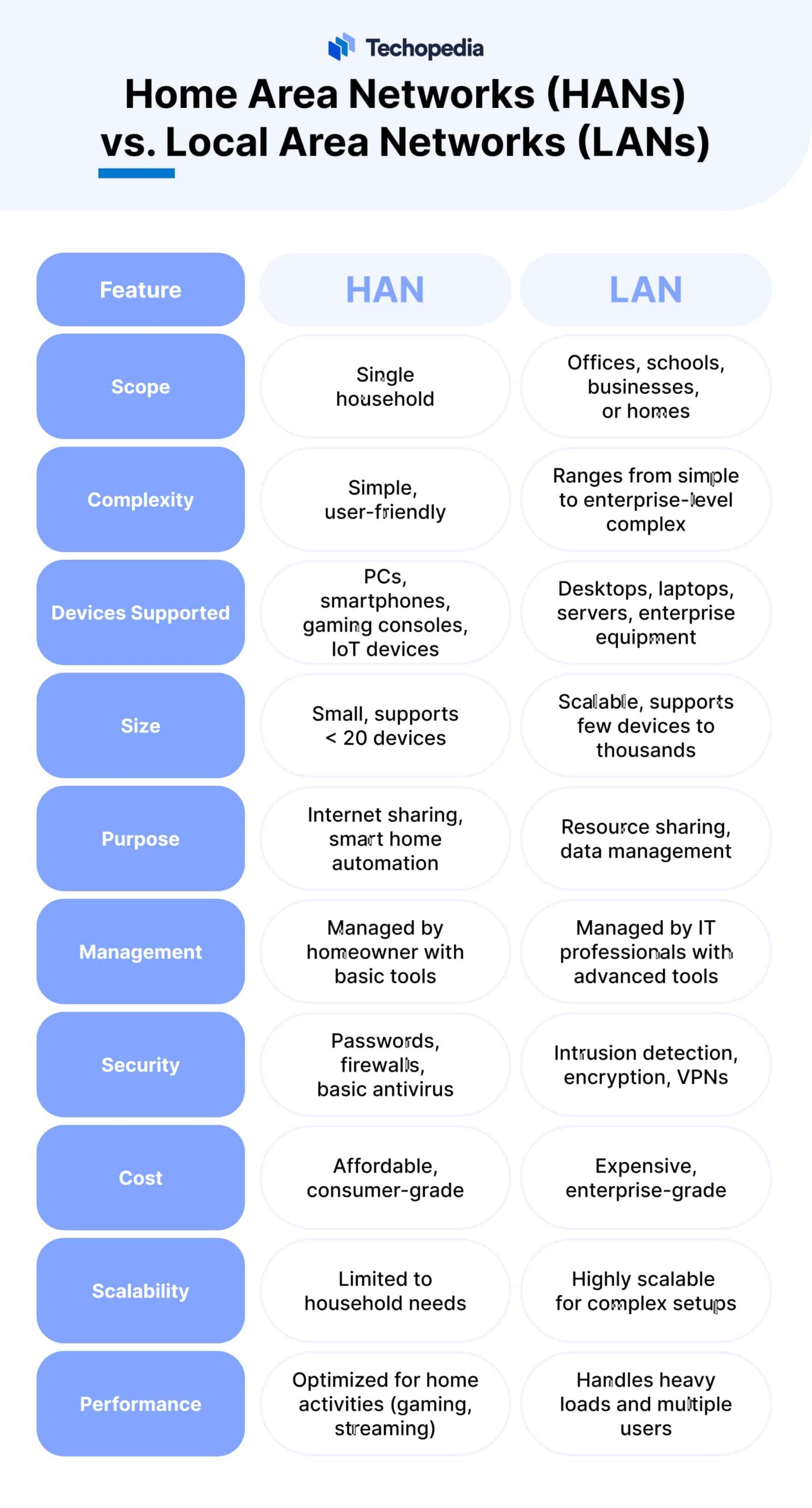

Home Area Networks (HANs) vs. Local Area Networks (LANs)

Home Area Network Components

Each component in a home area network helps create a connected digital ecosystem. Popular HAN components include the following:

  • Wireless routers act as the central hub for most home area networks. Is responsible for managing traffic between connected devices and providing Internet access.
  • Modems connect the home network to the ISP and convert the ISP’s signals into a usable format.
  • Wireless access points (WAPs) extend wireless coverage within a residence to ensure strong and consistent Wi-Fi signals throughout the home.
  • Network switches can expand the available Ethernet ports and allow more wired devices to connect to the network.
  • Ethernet cables are used to enable stable, high-speed wired data transmissions.
  • Endpoint devices include desktop computers, laptops, smartphones, tablets, and Internet of Things (IoT) devices like smart thermostats.
  • Consumer Network Attached Storage provides centralized storage that can easily be accessed by all devices on the HAN.
  • Peripheral devices include printers, scanners, smart TVs, and game consoles that can be accessed by multiple devices over the home network.
  • Surge Protectors and Uninterruptible Power Supplies (UPS) protect network equipment from power surges and provide backup power to maintain network functionality during outages.

Home Area Network Pros & Cons

Home area networks can enhance how a household functions, but they also have maintenance and signal coverage drawbacks.

Pros
  • Enables multiple digital devices to connect to the Internet through a single ISP connection.
  • Allows networked devices to share files, printers, and storage.
  • Provides freedom of movement for wireless devices like laptops, tablets, and smartphones.
  • Supports the connection and control of IoT devices like smart thermostats, digital security cameras, smart meters, and smart lighting systems.
Cons
  • Leaves the network vulnerable to security threats if not properly secured.
  • Reduces network performance when too many devices use bandwidth-intensive activities simultaneously.
  • Disrupts network functionality entirely if the router malfunctions.
  • Makes adding microcells or repeaters to prevent dead zones technically challenging for new HAN administrators.

How to Set Up a Home Area Network

Setting up a basic home area network (HAN) can be quite easy. Most commercial routers have user-friendly interfaces and come with setup wizards that can guide even technically challenged HAN administrators through the process.

How to Set Up a Home Area Network (HAN) in 10 Easy Steps

  1. Planning

    • Identify what devices you want to connect to the network.
    • Decide whether to use wired connections, wireless connections, or a mix of both connection types.
    • Assess the layout of the home to determine where the router should be set up and whether it will be necessary to use range extenders for Wi-Fi connections.
  2. Acquire and install the necessary hardware

    • Decide which router and modem to use and install them.
    • Set up ethernet cables for wired connections.
  3. Connect the modem to the Internet

    • Plug the modem into a power outlet.
    • Allow the modem to connect to the ISP’s service line.
    • Wait for the modem to establish a connection (usually indicated by a series of solid lights).
  4. Connect the router to the modem

    • Use an Ethernet cable to connect the modem’s output port to the router’s wide area network (WAN) port.
    • Plug in the router and turn the power on.
    • Wait for the router’s lights to stabilize.
  5. Configure the router

    • Use a computer or smartphone to connect to the router via Wi-Fi or an Ethernet cable.
    • Open a web browser and type the router’s default IP address (e.g., 192.168.1.1) into the address bar.
    • Log in using the default credentials provided in the router’s manual. (Default credentials are often “admin” and “password”).
  6. Set up the router

    • Change the router’s default credentials. Be sure to choose a unique network name (SSID) and use a strong password.
    • If given the opportunity, enable two-factor authentication for the router.
    • Enable additional features like guest networks, parental controls, or Quality of Service (QoS) for bandwidth prioritization, as needed.
  7. Connect devices

    • For wireless connections, select the network name (SSID) on each device and enter the Wi-Fi password.
    • For wired connections, use Ethernet cables to connect devices directly to the router.
  8. Test the network

    • Check to make sure that devices can connect to the network and access the internet.
    • Test file sharing, printing, and other network functions to ensure everything works as expected.
  9. Enhance coverage if necessary

    • If there are dead zones with the home or spots where signals are weak, consider moving the router to a different location or adding a range extender.
  10. Maintain the network

    • Periodically check for firmware updates and apply them.
    • Replace or upgrade hardware as technology advances or household needs change.
    • Reassess security settings to keep the network protected from emerging threats.

Home Area Network Optimization

A home network’s overall performance and reliability depend on several factors, including the quality and location of the router, the strength and coverage of its signals, the number of devices that connect to it, and the Internet bandwidth provided by the ISP.

To optimize the security of a home area network, it’s important to install the best antivirus software on all connected devices. Disabling unnecessary services, such as remote management, can also reduce the attack surface and minimize potential entry points for threat actors.

Educating household members about safe online practices and teaching them how to recognize phishing attempts can complement technical controls and significantly enhance a home network’s security, safety, and resilience.

The Bottom Line

While the terms “home area network” and “local area network” are sometimes used as synonyms, it’s important to understand that the definition of home area network specifically refers to a local area network set up within a residence.

Essentially, a home area network is tailored to the needs of a household, and its purpose is to connect personal computing devices with internet access and shared hardware resources like printers. In contrast, a LAN’s scope is broader, and its purpose is to connect computing devices in the enterprise, small business, and home offices (SOHOs).

Essentially, every HAN is a LAN, but not every LAN is a HAN.
