What is a Bounding Box?

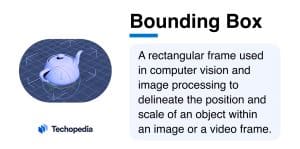

A bounding box is a rectangular frame used in computer vision and image processing to delineate the position and scale of an object within an image or a video frame.

Advertisements

This frame is defined by the coordinates of its top-left corner, along with its width and height, which are needed for identifying and tracking objects across various applications. In some advanced uses, depth is added to accommodate 3D analysis, extending its application to augmented and virtual reality environments.

Bounding boxes allow for precise object detection tasks necessary for the functioning of autonomous vehicles, retail inventory management, security surveillance, healthcare diagnostics, and agricultural monitoring, among many others. These rectangles simplify complex visual content, making it possible for computers to understand and interact with the physical world.

The process of creating bounding boxes can be manual, through human annotation for training machine learning (ML) models, or automated via object detection algorithms like YOLO and SSD, which are capable of real-time object localization.

Techopedia Explains the Bounding Box Meaning

Techopedia Explains the Bounding Box Meaning

The simplified bounding box definition is a rectangular frame that marks the boundaries of an object within an image, telling a computer where to focus its attention. It’s an important tool in computer vision, simplifying the way machines recognize and process visual data.

There are two main types of bounding boxes. First, you have Axis-Aligned Bounding Boxes (AABB), which are parallel to the image’s axes and don’t rotate, making them quick to compute and suitable for straightforward applications.

Then there are Oriented Bounding Boxes (OBB), which can rotate to align more precisely with an object’s orientation, offering a tighter fit for more complex shapes but requiring more computational resources.

The choice between AABB and OBB depends on the balance between the need for precision and computational efficiency.

Bounding Box in Computer Vision

In computer vision, bounding boxes are a tool for delineating the presence and location of objects within an image or video frame. By drawing a rectangle that encapsulates an object, bounding boxes provide a clear indication of where an object starts and ends in the spatial domain of the visual data.

This demarcation is very important for subsequent image processing and object detection tasks, allowing computers to isolate and focus on specific segments of an image for deeper analysis.

Bounding boxes used in object detection is a two-fold process. Initially, a bounding box identifies the region of interest within the image where an object is located. This is necessary for algorithms to allocate computational resources by focusing on areas of the image where objects are present. It reduces the need to process the entire image at once.

Following this, within the bounding box, object detection algorithms apply classification techniques to determine the type of object enclosed. This could range from identifying faces in a security system to recognizing products on a shelf for inventory management.

Bounding boxes are important in tracking objects across successive frames in video analysis. Algorithms can track movement and even predict future positions by consistently locating the object within a bounding box across frames. This is great for applications such as surveillance and autonomous vehicle navigation.

In addition to object classification and tracking, bounding boxes also allow for the measurement of object dimensions and the assessment of spatial relationships between multiple objects in a scene.

For example, in a crowded urban environment, bounding boxes help autonomous driving systems not only identify and classify pedestrians and vehicles but also gauge their distances and relative speeds, informing navigation and safety decisions.

What Parameters Are Used to Define a Bounding Box?

A bounding box is defined by several parameters that outline its position and size within an image. These parameters include the coordinates of its location, as well as its width, height, and sometimes depth, especially in 3D applications.

CoordinatesWidth and HeightDepth (in 3D applications)

The starting point of a bounding box is typically marked by the (x, y) coordinates of its top-left corner. These coordinates set the positional reference from which the box extends across the image. In 3D spaces, a z-coordinate is also included to indicate depth, adding a third dimension for applications like augmented reality or 3D modeling.

These dimensions determine the size of the bounding box, specifying how far it extends horizontally (width) and vertically (height) from its starting coordinates. The width and height encompass the object within the box, providing a clear boundary for the area of interest.

For bounding boxes used in 3D environments, depth is an additional parameter that extends the box along the z-axis. This allows the bounding box to encapsulate objects in three-dimensional space, offering a more comprehensive representation of their physical form.

Bounding boxes can be categorized into two types based on their alignment and rotation:

Axis-Aligned Bounding Boxes (AABB)
These boxes are aligned with the image axes, meaning their edges are parallel to the x and y axes of the image frame. Axis-aligned bounding boxes are simpler and computationally more efficient but may include more background space when encasing irregularly shaped objects.

Oriented Bounding Boxes (OBB)
Unlike AABB, oriented bounding boxes can rotate to align closely with the object’s orientation. This capability allows for a tighter fit around the object, reducing the inclusion of irrelevant background space. However, calculating and maintaining the orientation of OBBs requires more computational effort.

Bounding Boxes vs. Segmentation

Bounding boxes and segmentation are both important techniques in computer vision for identifying and analyzing objects within images, but they serve different purposes and have their own advantages.

Feature Bounding Boxes Segmentation
Definition Rectangular boxes that delineate the position and size of an object within an image. A process that divides an image into segments or pixels to identify different objects or areas more precisely.
Precision General; captures the area of interest but can include background areas not part of the object. High; segments the image down to the pixel level, accurately outlining the shape of objects.
Speed Fast; simple shapes mean quicker processing, suitable for real-time applications. Slower; detailed analysis requires more computational power and time.
Use Cases Object detection and tracking in real-time systems like surveillance and autonomous vehicles. Detailed object analysis in applications requiring precise outlines, such as medical imaging and precision agriculture.
Advantages Efficient and straightforward, providing a quick way to locate objects. Ideal for scenarios where speed is important. Provides detailed object contours, suitable for applications where object shape and boundary precision are necessary.
Types Axis-Aligned (AABB) and Oriented (OBB) for varying levels of precision. Semantic segmentation for identifying classes of objects, and instance segmentation for distinguishing individual objects within the same class.

Bounding Box Use Cases

Bounding boxes are used in many industries to improve efficiency, safety, and data analysis. Here are a few sectors they are used in, and how they’re used.

  1. Automotive

    In the automotive industry, bounding boxes are important for developing autonomous vehicle technologies. They help in detecting and tracking other vehicles, pedestrians, and obstacles on the road, ensuring safe navigation and decision-making by autonomous driving systems. For example, a bounding box could be used to identify and follow the movement of a pedestrian crossing the street, allowing the vehicle to adjust its path accordingly.
  2. Retail

    Retailers use bounding boxes for inventory management and customer behavior analysis. By recognizing products on shelves, bounding boxes help in monitoring stock levels and planning restocks. They’re also used in analyzing customer movements within stores, helping retailers optimize store layouts and improve the shopping experience.
  3. Security

    In security and surveillance, bounding boxes contribute to monitoring and threat detection. They’re used to detect unauthorized access or identify suspicious activities by tracking individuals across camera feeds. Face detection algorithms, powered by bounding boxes, play a role in identifying individuals in public spaces or controlled access areas.
  4. Healthcare

    Bounding boxes help in medical imaging by isolating areas of interest, such as tumors or fractures, in scans. This precise identification allows for better diagnosis, treatment planning, and monitoring of disease progression.
  5. Manufacturing

    In manufacturing, bounding boxes are used for quality control, allowing for the automatic detection of defects in products or components. By identifying anomalies in images of manufactured items, companies can ensure product quality and reduce manual inspection efforts.
  6. Agriculture

    Farmers and agronomists use bounding boxes in analyzing drone or satellite imagery to assess crop health, detect pest infestations, or estimate yields. This application allows for targeted interventions, improving crop management and productivity.

Bounding Box Pros and Cons

Like everything, bounding boxes come with their own set of pros and cons.

Pros

  • Efficiency
  • Simplicity
  • Versatility
  • Data Annotation

Cons

  • Precision
  • Object overlap
  • Dimensionality

Improving Bounding Box Accuracy

Improving the accuracy and reliability of bounding boxes in computer vision is needed for developing more effective and reliable applications. Here are some techniques used to improve bounding box performance.

Machine Learning and Deep Learning
Implementing advanced machine learning and deep learning models can significantly enhance the precision of bounding box predictions. Algorithms like Convolutional Neural Networks (CNNs) are trained on vast data sets to improve their ability to accurately detect and outline objects.

Data Augmentation
Increasing the diversity of training data through augmentation techniques, such as rotating, scaling, and flipping images, helps models become more robust and better handle variations in object appearance and orientation.

Multi-Scale Detection
Using algorithms capable of detecting objects at various scales and resolutions addresses the challenge of variable sizes, making sure that both small and large objects can be accurately detected within an image.
Integration of Contextual Information
Incorporating contextual clues from the surrounding environment or other objects in the scene can help disambiguate challenging detections and improve overall accuracy.

The Bottom Line

Bounding boxes are necessary for computer vision for object detection and tracking, widely applied across industries like automotive, retail, and healthcare. They simplify visual data analysis, making it easier for machines to interpret images and videos.

Despite challenges such as occlusion and overlapping objects, advancements in machine learning continue to enhance their accuracy and reliability.
