System Bus

What is a System Bus?

A system bus is a physical or logical communication path that allows different components of a computer system’s architecture to communicate with the CPU and each other.

Table of Contents Table of Contents

1. What is a System Bus?
2. Key Takeaways
3. The Role of System Buses in Early PC Architectures
4. How System Buses Worked
5. Traditional System Bus Components
6. Types of Traditional System Bus
7. The Importance of System Buses Today
8. Traditional System Bus Pros & Cons
9. The Bottom Line
10. FAQs
11. References

Show Full Guide

Table of Contents

1. What is a System Bus?
2. Key Takeaways
3. The Role of System Buses in Early PC Architectures
Show Full Guide
4. How System Buses Worked
5. Traditional System Bus Components
6. Types of Traditional System Bus
7. The Importance of System Buses Today
8. Traditional System Bus Pros & Cons
9. The Bottom Line
10. FAQs
11. References

The Role of System Buses in Early PC Architectures

In the early days of personal computing (PCs), the term system bus referred to a single shared physical connection on a motherboard that allowed the computer’s CPU, memory, and peripheral devices to communicate and interact.

Today, while shared physical connections on a motherboard still exist, they don’t function as a single communication path (bus). Instead, they facilitate direct communication through point-to-point communication protocols and interconnects like PCI Express or AMD Infinity Fabric.

How System Buses Worked

In traditional computer architectures, the system bus was a single physical pathway that allowed multiple components to communicate over the same set of wires, cables, or circuit board traces.

Essentially, the CPU, memory, and various peripherals accessed the system bus to send and receive data.

Because multiple devices shared the same bus, a mechanism called bus arbitration was necessary to manage access and prevent conflicts. Typically, the CPU acted as the bus master. When components needed to communicate, they would request the bus master, and arbitration protocols determined which device could use the bus next.

While system buses were important in early computer architectures, their use was not scalable. Devices had to wait their turn to use the system bus, which increased latency and reduced response time. Devices connected to the bus also had to share available bandwidth, which reduced data transfer rates (DTRs).

By the mid-2000s, system buses had essentially become bottlenecks, and their limitations required the development of more advanced bus architectures that could provide point-to-point communication pathways.

Traditional System Bus Components

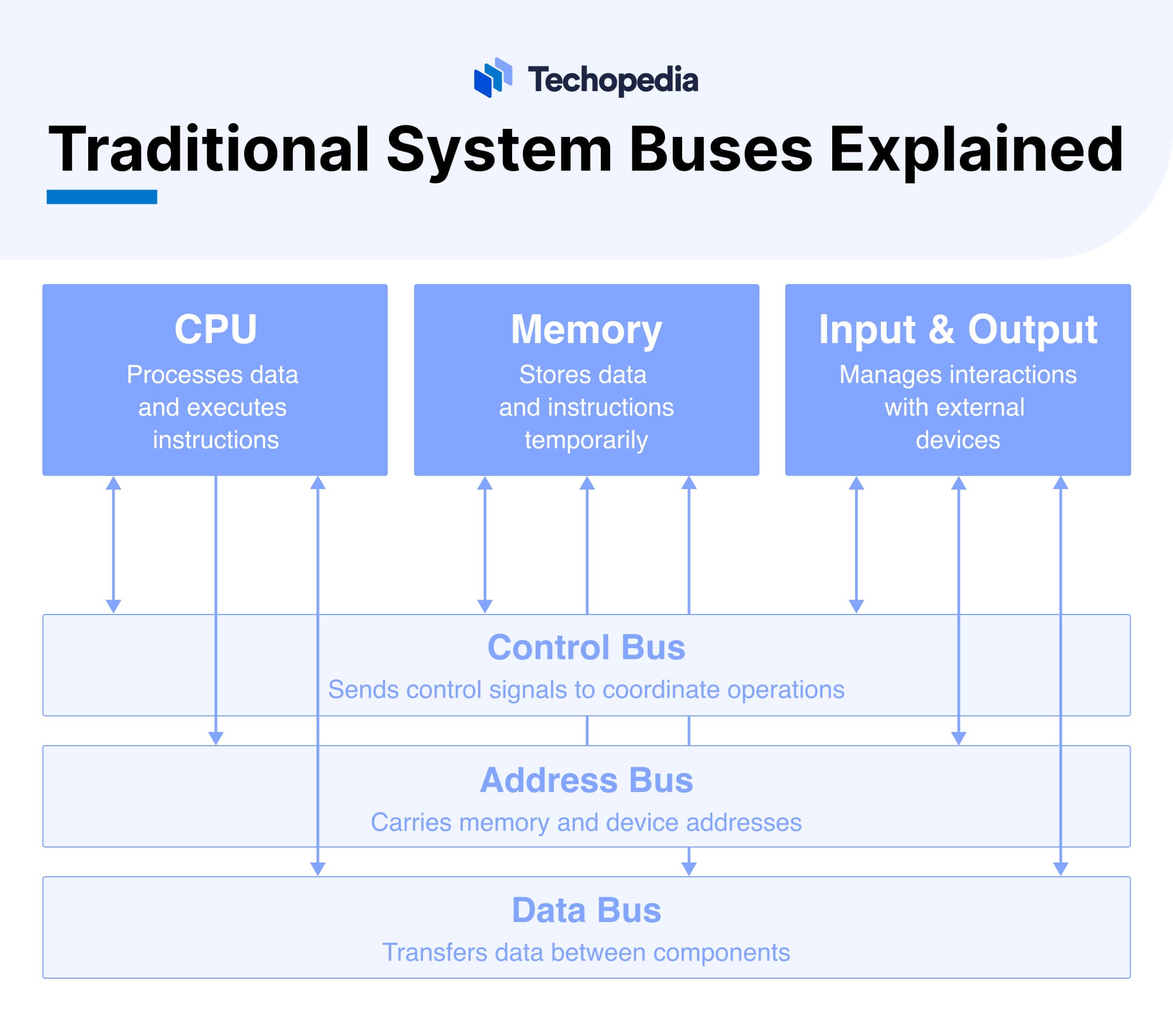

Traditional system buses consisted of a data bus, an address bus, and a control bus.

• The data bus was responsible for data transmissions. Its size, measured in bits, determined how much data could be transferred in one operation. A wider data bus permitted faster and more efficient data transfer.
• The address bus specified the data’s location. Its width helped determine the maximum amount of memory the system could access.
• The control bus ensured that data transfers occurred in the correct order and that each operation was carried out at the right time. It used control signals to help manage the timing and sequencing of tasks, ensuring that the system operated in an organized and efficient manner.

Types of Traditional System Bus

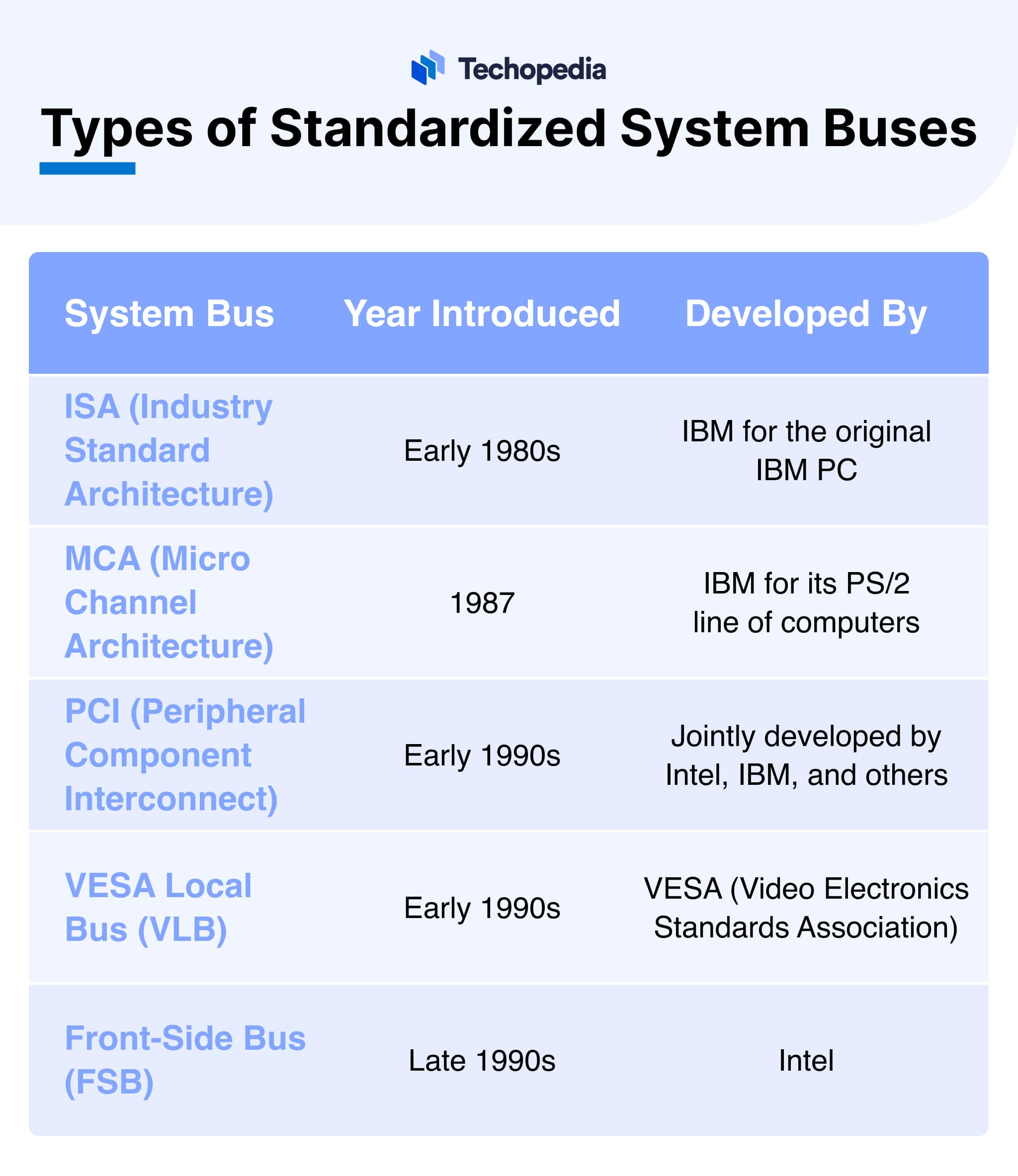

Historically, there were several types of standardized system buses. Each type of bus was designed to meet the evolving performance, scalability, and functionality requirements of computer systems at the time.

For example, until 2008, system buses in older Intel architectures were called Front-Side Buses (FSBes). In 2009, Intel introduced QuickPath Interconnect (QPI) to provide point-to-point links and replace front-side buses in newer architectures.

The Importance of System Buses Today

Today, the concept of system buses is used to explain how (and why) the fundamental principles of data, address, and control pathways continue to underpin the design of contemporary computer architectures.

Understanding how the system bus works can also help computer science students understand the importance of using the best antivirus software and putting robust security measures in place. Malware can exploit vulnerabilities in system components and allow threat actors to gain access to sensitive data or disrupt operations.

How to Use System Buses

Today, even though traditional system buses are largely obsolete, the logic behind their development continues to influence the design and functionality of modern computer architectures. Systems-on-a-chip (SoC), for example, put multiple components on a single chip and use buses to facilitate communication and data transfers between components.

Traditional System Bus Pros & Cons

While traditional system buses were essential for the operation of early computer systems, their design trade-offs eventually led to their obsolescence.

The Bottom Line

By the mid-2000s, the definition of a system bus had already evolved beyond its historical meaning of a shared physical pathway. Understanding this evolution can help the average person understand the role of data buses, address buses, and control buses in modern architectures.
