General Packet Radio Service (GPRS)

Why Trust Techopedia

What is GPRS?

General Packet Radio Service (GPRS) is a mobile data standard that was widely used for wireless cellular networks before more advanced technologies like 3G and 4G were developed. It represents a step up from the earlier systems by allowing mobile phones to send and receive data more efficiently than traditional voice services.

Advertisements

GPRS is often referred to as 2.5G, indicating it’s a technology between the second (2G) and third (3G) generations of mobile telephony.

GPRS has been fundamental in mobile communication as it allowed devices to access the Internet, send multimedia messages, and use email and web-based applications while on the go.

It turned mobile phones from primarily voice communication tools into multi-functional devices capable of a wide range of data interactions.

Techopedia Explains the GPRS Meaning

Techopedia Explains the GPRS Meaning

The detailed GPRS definition is a packet-based data bearer service for mobile networks that enhances 2G networks by enabling packet-switched data services. This means that data is broken into smaller packets before being transmitted and reassembled at the destination.

By using a packet-switched framework (PSN), GPRS allows for a more efficient use of network resources compared to circuit-switched systems, where a dedicated line is required for each connection.

The technology behind GPRS involves multiple GPRS support nodes (GSNs). The Serving GPRS Support Node (SGSN) is responsible for delivering data packets to and from the mobile devices within its service area, while the Gateway GPRS Support Node (GGSN) acts as a gateway between the GPRS network and external packet-switched networks, such as the Internet or private networks.

This architecture allows users to remain continuously connected to the network and transmit data sporadically without the need to maintain a constant connection.

History of GPRS

The development of GPRS offered a bridge between the traditional circuit-switched networks of the second generation (2G) and the fully packet-switched networks characteristic of later technologies.

  • Early 1990s: The concept of GPRS was first developed as part of the GSM standard to address the growing need for a more efficient mobile data service.
  • 1997: The GPRS standard was officially defined in the release of GSM phase 2+. This marked the beginning of its integration into existing networks.
  • 2000-2001: Commercial deployment of GPRS began around the world. This period saw various operators rolling out GPRS services, which provided users with Internet access and the ability to send multimedia messages more efficiently than before.
  • Mid-2000s: GPRS had become widely available, with most GSM networks offering varying levels of GPRS service. It supported a wide range of applications, from simple text messaging to complex Internet services, and was instrumental in driving the uptake of mobile Internet.

Throughout its lifecycle, GPRS improved the data capabilities of mobile networks without requiring a complete overhaul of existing infrastructure. Its development paved the way for the 3G and 4G services that would follow, each building on the packet-switched technology introduced by GPRS.

How GPRS Works

Here’s a breakdown of the GPRS network architecture and how data transmission occurs in a GPRS system.

GPRS Network Architecture

The architecture of a GPRS network consists of two main components: the Serving GPRS Support Node and the Gateway GPRS Support Node.

Serving GPRS Support Node (SGSN)
This is the node that is closest to the mobile user. It maintains a record of the mobile devices’ locations and manages the delivery of data packets to and from the mobile devices within its service area. The SGSN performs functions like authentication, mobility management, and session management.

Gateway GPRS Support Node (GGSN)
The GGSN acts as a bridge between the GPRS network and external packet-switched networks, such as the Internet or private enterprise networks. It routes data packets from the SGSN to the appropriate external network and vice versa.

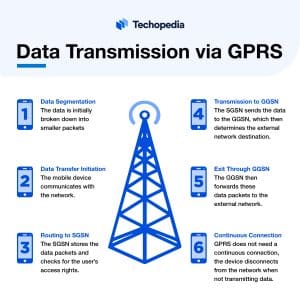

Data Transmission via GPRS

Data Transmission via GPRS

Here’s a step-by-step breakdown of how data is transmitted through a GPRS network:

  1. Data Segmentation

    When a data service is initiated, the data to be transmitted is broken down into smaller packets. This segmentation allows the network to send the data through various routes, optimizing the use of available bandwidth.
  2. Data Transfer Initiation

    The mobile device communicates with the network, indicating its readiness to send or receive data. It connects to the nearest base station, which forwards the data packets to the SGSN.
  3. Routing to SGSN

    The SGSN temporarily stores the data packets and checks for the user’s authentication and rights to access the network. Once authenticated, the SGSN updates the user’s location and prepares to route the packets to their destination.
  4. Transmission to GGSN

    The SGSN sends the data packets to the GGSN, which then determines the external network destination (e.g., an Internet address) of the packets.
  5. Exit Through GGSN

    The GGSN forwards these packets to the external network. For incoming data, the process is reversed, with packets entering through the GGSN.
  6. Continuous Connection

    Unlike traditional mobile voice calls, GPRS does not require a continuous connection. The device disconnects from the network when not transmitting data, allowing the network to manage multiple users efficiently.

    GPRS vs. GPS

    The technologies of GPRS and GPS are distinct in their functions and applications, despite their somewhat similar acronyms.

    Primary FunctionTechnology TypeHow it WorksInfrastructureKey Uses

    GPRS: Data transmission over cellular networks.

    GPS: Satellite-based location tracking.

    GPRS: Cellular network technology.

    GPS: Satellite navigation system.

    GPRS: Transmits data in packets through mobile networks.

    GPS: Uses signals from satellites to determine precise locations.

    GPRS: Uses cell towers and mobile network infrastructure.

    GPS: Consists of a constellation of Earth-orbiting satellites.

    GPRS: Internet access, Multimedia messaging, IoT communications

    GPS: Navigation, Geotagging, Time synchronization

    GRPS Features and Functions

    Key Features of GPRS include:

    • High-Speed Data Transmission: Allows speeds up to 114 kbps using packet switching, which sends data in small packets, enhancing speed and efficiency.
    • Always-On Connectivity: Provides continuous network connection, eliminating the need to reconnect for each data transfer.
    • Multislot Capability: Uses up to eight-time slots simultaneously to increase data rates.
    • Efficient Use of Network Resources: Only uses network resources when transmitting data, reducing congestion and improving service quality.

    Here are some of the core functions:

    Integrated Data Services

    Support for IP-based Services
    Enables applications such as WAP access, multimedia downloads, and mobile Internet applications.

    Flexible Charging Models
    Offers billing based on data volume rather than connection time, providing cost-effective data usage.

    6 Applications of GPRS

    GPRS technology supports many applications across different sectors.

    1. In telecommunications, it facilitates mobile Internet access and multimedia messaging.
    2. The transportation and logistics industries use GPRS for fleet management and vehicle telematics, enhancing route planning and vehicle diagnostics.
    3. Emergency services benefit from GPRS through improved real-time communication and location-based services.
    4. In healthcare, GPRS supports remote patient monitoring and mobile health applications, allowing data exchange from patient devices to healthcare providers.
    5. It facilitates transactions in mobile banking in financial services from mobile devices.
    6. It enables connectivity for smart appliances and wearable technology in consumer markets.

    GPRS Pros and Cons

    GPRS improves data transmission speeds significantly over 2G networks and offers cost-effective data usage based on volume rather than time. It provides always-on connectivity for continuous access and supports multitasking with simultaneous voice and data services.

    However, GPRS speeds can fluctuate due to network traffic and coverage limitations, and performance degrades in areas with poor cellular reception. As a legacy technology, it falls behind newer standards like 3G, 4G, and 5G in terms of speed and security, with outdated protocols that pose increased risks for data breaches.

    The Bottom Line

    Now you know the GPRS meaning. GPRS advanced mobile communications by providing enhanced data speeds and continuous connectivity. As a bridge from 2G to more robust technologies like 3G and 4G, GPRS laid the groundwork for today’s mobile Internet services.

    While becoming less relevant with the spread of newer technologies, GPRS remains important in areas without advanced network infrastructure. Its legacy continues to influence mobile data communication, though it is expected to phase out as global networks evolve.

    FAQs

    What is GPRS in simple terms?

    What is GPRS used for?

    What does GPRS mean on my phone?

    Is GPRS the same as 4G?

    How is GPRS different from GSM?

    Is GPRS free?
