What is Tunneling?

Tunneling is the process that enables the secure transfer of data from one network to another. Tunneling involves allowing private network communications to be sent across a public network, such as the Internet, through a process called encapsulation.

Advertisements

The encapsulation process makes data packets appear as though they are public to the public network when they are actually private data packets, allowing them to pass through unnoticed.

Tunneling is also known as port forwarding.

What is Tunneling

Key Takeaways

  • Tunneling allows private network communications to be sent across a public network.
  • Tunneling uses a process called encapsulation to allow data packets to pass through public networks unnoticed.
  • Virtual private networks (VPNs) are a common example of network tunneling.
  • A VPN connection safeguards online activities by creating an encrypted tunnel for data to travel through.
  • Types of tunneling include IP-in-IP, VPN tunneling, SSH tunneling, and GRE tunneling.

How Tunneling Works

  1. In tunneling, data are broken into smaller pieces called packets as they move along the tunnel for transport. As the packets move through the tunnel, they may be encrypted, and a process called encapsulation occurs.
  2. Private network data and the protocol information that goes with it are encapsulated in public network transmission units for sending.
  3. The units appear as public data, allowing them to be transmitted across the Internet. Encapsulation ensures the packets arrive at their intended destination.
  4. At the final destination, decapsulation and decryption occur to restore the original data.

Tunneling is a way for communication to be conducted over a private network but tunneled through a public network. This is particularly useful in corporate settings and provides security features, such as encryption options.

What is Packet Encapsulation?

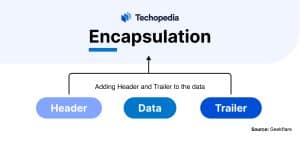

Encapsulation

Packet encapsulation refers to sending data that is augmented with successive layers of control information before transmission across a network. Encapsulation marks where a packet, or unit of data, begins and ends. The process involves adding headers (the beginning of the packet) and trailers (the end of a packet) around the data. The data is sometimes referred to as the payload.

The reverse of encapsulation is decapsulation, which refers to the successive layers of data being removed (essentially unwrapped) at the receiving end of a network.

Types of Tunneling

Types of tunneling refer to the different approaches to creating tunnels, specifically how data is encapsulated or transmitted through a network tunnel.

Examples include:

Tunneling Protocols

When data moves between digital devices or over the Internet, it uses protocols. These protocols are technical standards that define how the data is encapsulated, transmitted, and secured within a tunnel.

Examples include:

IPsec (Internet Protocol Security)
IPsec primarily utilizes tunnel mode for creating VPN tunnels. It provides an enhanced level of security on VPN connections by providing authentication and encryption services at the network level of the VPN. The second IPsec mode, called transport mode, is used for end-to-end encryption.
Layer Two Tunneling Protocol (L2TP)
Officially published in 1999, L2TP is an extension of Point-to-Point Tunneling Protocol (PPTP). It is the successor of two protocols, one from Microsoft (PPTP) and one from Cisco (L2F).
OpenVPN
OpenVPN uses secure socket layer/transport layer security (SSL/TLS) features to ensure encryption and allow data to traverse network address translators and firewalls.
Point-to-Point Tunneling Protocol (PPTP)
PPTP is a set of communication rules that govern the secure implementation of virtual private networks. It is depreciated due to security vulnerabilities.
SSH (Secure Shell)
Secure Shell (SSH) is a cryptographic protocol and interface for executing network services, shell services, and secure network communication with a remote computer.
Wireguard
WireGuard is a modern, open-source VPN tunneling protocol that uses modern cryptographic protocols and algorithms – like ChaCha20 for encryption and Poly1305 for authentication – to ensure complete confidentiality of data transmitted over the VPN.

What is a VPN Tunnel?

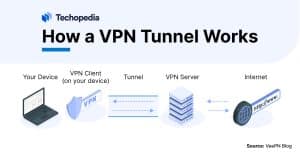

How a VPN Tunnel Works

A VPN connection safeguards online activities by creating an encrypted tunnel for data transmission. All data sent through the VPN connection or VPN service provider is encrypted using advanced cryptographic algorithms facilitated by protocols such as OpenVPN.

Once the encrypted data reaches the VPN server, it is decrypted and then sent to its final destination, such as a website or web service. Data sent back to the user’s device is also encrypted when it travels through the VPN tunnel.

VPN split tunneling is a technique to divide traffic. Some traffic is routed through the VPN tunnel, while other traffic bypasses the VPN and is sent directly to the public network. Split tunneling is often used to improve network speed and performance in a multi-network environment.

5 Network Tunneling Use Cases

Why Should You Use Tunneling?

Tunneling helps private data to travel securely over a public network, to safeguard data and ensure privacy. In some cases, users can also bypass firewalls.

For example, organizations can set up VPN connections, allowing access to data from secure locations. It facilitates secure point-to-point connections (i.e., secured between the sender and receiver) by using encapsulation, authentication, and encryption.

Tunneling Pros and Cons

Pros
  • Bypasses geographical restrictions or censorship
  • Enhances data security and privacy
  • Facilitates network compatibility by bridging different network protocols
  • Helps bypass network address translation (NAT) issues
Cons
  • Encapsulation can lead to higher latency
  • Endpoints may become a single point of failure in the network
  • Setting up and managing tunnels can be complex
  • Tunneling techniques can be exploited to bypass security measures

The Bottom Line

The tunneling definition refers to a process that enables the secure transfer of data from one network to another. It involves allowing private network communications to be transmitted across public networks by using encapsulation to allow data packets to pass through unnoticed.

VPNs are a common example of tunneling. It is also used to bypass geographical restrictions or censorship and to enhance data security and privacy. While tunneling offers many benefits, it is important to know that setting up and managing tunnels can be complex, and tunneling techniques can be exploited to bypass security measures.

FAQs

What is tunneling in simple terms?

Which are examples of tunneling?

What is tunneling a VPN?

What is the purpose of tunneling?

What is IP tunneling used for?

What is TCP tunneling used for?
