Kernel Method

What is the Kernel Method?

The kernel method is an algorithmic technique in machine learning (ML) for processing data. It involves mapping input data into a higher-dimensional space to make it easier to apply linear classification or regression methods on datasets that are not linearly separable in their original space.

Advertisements

This mapping is done through kernel functions, which compute the inner products of data points in the higher-dimensional space, allowing complex patterns to be analyzed without explicitly performing the computationally expensive transformation.

By projecting data into a higher-dimensional space, kernel methods allow linear models to form nonlinear decision boundaries. This is very useful in tasks where the relationship between features is not linear, so the model can capture a broader range of patterns and relationships within the data.

The use of kernel functions is what makes the kernel method so effective. These functions, such as the polynomial, radial basis function (RBF), and sigmoid kernels, define how data is transformed and compared in the new space.

The choice of kernel function impacts the model’s ability to generalize from training data to unseen data, making it important in the development of machine learning models.

In practicality, the kernel method allows for a more efficient implementation of algorithms like Support Vector Machines (SVMs) and Principal Component Analysis (PCA).

It does so by computing similarities or distances between pairs of data points in a transformed feature space, thereby facilitating the identification and exploitation of complex patterns in the data for classification, regression, and clustering tasks.

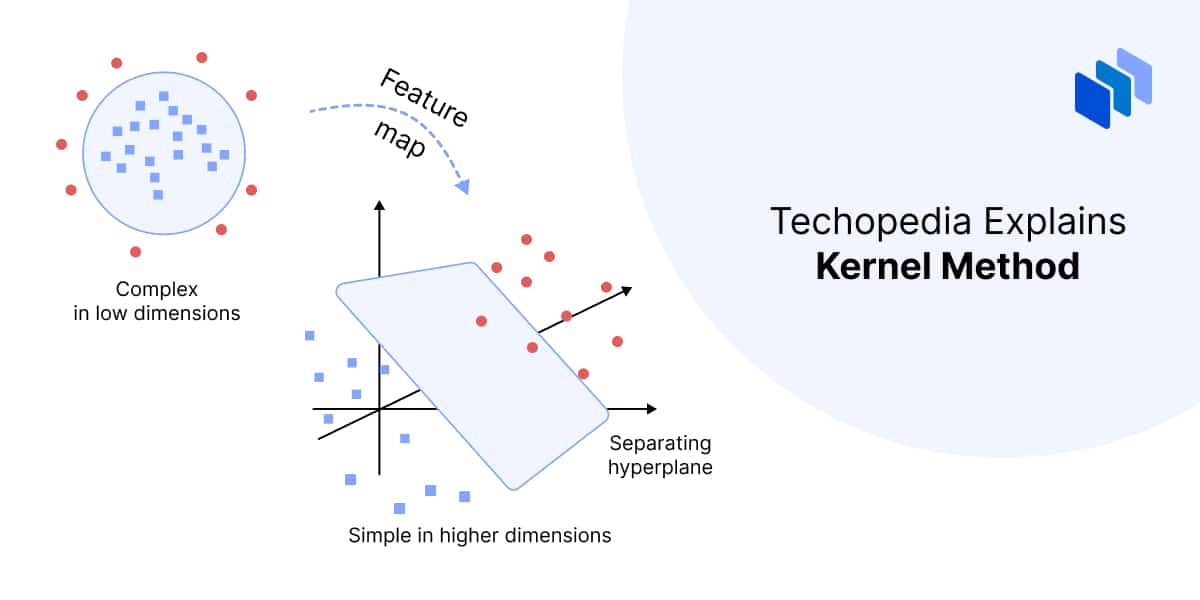

Techopedia Explains the Kernel Method Meaning

Techopedia Explains the Kernel Method Meaning

The laymans definition of kernel methods is an algorithm that allows us to transform complex data into a higher-dimensional space where it becomes easier to separate and analyze.

This transformation is done in a way that doesn’t require us to understand or visualize the higher-dimensional space directly, thanks to mathematical functions known as kernels.

Kernel methods equip us with the capability to uncover insights from data that might otherwise remain hidden.

A Brief History of the Kernel Method

The kernel method originated in the 1960s, coming from the field of statistics and mathematical optimization, specifically to address non-linear data separability issues.

The foundation of kernel methods was laid by Aizerman, Braverman, and Rozonoer in the early 1960s through their work on potential functions. However, the term “kernel” and the formalization of the kernel method were introduced later in the context of SVMs by Vladimir Vapnik and Alexey Chervonenkis in the 1970s.

Their work on the theory of statistical learning and the development of SVMs provided a mathematical framework for using kernel functions to project data into higher-dimensional spaces.

A major advancement of kernel methods was the introduction of the “kernel trick” in the 1990s. This technique, associated with SVMs, allowed for the implicit mapping of input data into high-dimensional feature spaces without the need for explicit computation of the coordinates in that space.

This reduced the computational complexity of using high-dimensional spaces, making kernel methods more accessible and practical for other applications.

Throughout the late 1990s and early 2000s, the application of kernel methods expanded to include other algorithms such as PCA, canonical correlation analysis (CCA), and ridge regression, among others. Researchers began to explore various kernel functions and their applications in different domains, leading to the development of specialized kernels for text, images, and graphs.

Today, the kernel method is a fundamental part of many machine learning algorithms, contributing to advancements in fields ranging from bioinformatics to computer vision.

All of this is thanks to the collaborative effort of mathematicians, statisticians, and computer scientists across several decades.

How the Kernel Method Works

The kernel method operates by transforming the original input data into a higher-dimensional space, a process that enables more complex patterns to be identified and utilized by machine learning algorithms.

At the center of the kernel method is the kernel function, a mathematical tool that calculates the similarity between pairs of data points in the transformed space. This function allows the algorithm to work in the higher-dimensional space without the need to explicitly compute the coordinates of data points in that space.

Instead, the kernel function computes the inner products of the data points in the higher-dimensional space, facilitating operations like classification or regression in this more complex space.

Here’s a closer look at the mathematical foundations of the kernel method, which rests on two main concepts:

Feature Space
This is the higher-dimensional space where data is mapped. The transformation aims to make the dataset linearly separable, or, more generally, easier to analyze by machine learning models.
Kernel Functions

These functions define the transformation to the feature space. They vary in form, each suited to different types of data or machine learning tasks. Common examples are:

  • Linear Kernel: Useful for linearly separable data.
  • Polynomial Kernel: Captures polynomial relationships between data points.
  • Radial Basis Function (RBF) Kernel: Great in grouping unstructured data.

Kernel Functions

We briefly mentioned kernel functions earlier, but let’s take a more in-depth look.

LinearPolynomialRadial Basis FunctionSigmoidLaplacianHyperbolic Tangent (Tanh)ANOVAChi-Squared

Definition

Computes the linear similarity between two data points. Suited for data that is linearly separable in the original space.

Selection Criteria

Chosen for simplicity and efficiency when data is linearly separable or nearly so.

Impact on Model Performance

High speed and low complexity, but may underperform with complex, non-linear data.

Definition

Raises the linear similarity to power, introducing non-linearity. Includes degree as a parameter to adjust complexity.

Selection Criteria

Selected when data exhibits polynomial relationships. The degree of the polynomial must be tuned.

Impact on Model Performance

Can model complex relationships. Higher degrees increase model complexity and the risk of overfitting.

Definition

Uses the Gaussian function to measure similarity, sensitive to the distance between points. Features a width parameter that affects locality.

Selection Criteria

Used for non-linear datasets where the influence of a data point decreases with distance. Parameter tuning is important.

Impact on Model Performance

Highly flexible, and capable of modeling diverse data structures. Risk of overfitting if not properly tuned.

Definition

Mimics the behavior of the sigmoid function in neural networks, introducing non-linearity.

Selection Criteria

Applied in scenarios resembling neural network activation functions. Parameters affect the shape of the sigmoid.

Impact on Model Performance

Offers a neural network-like decision boundary. Can be tricky to tune and may lead to non-convex decision boundaries.

Definition

Similar to RBF but uses the exponential of the negative L1-norm of the distance between points, making it sensitive to local changes.

Selection Criteria

Chosen for tasks requiring sensitivity to local structure in the data.

Impact on Model Performance

Highly effective for local structure modeling but can be sensitive to noise.

Definition

Computes the hyperbolic tangent of the similarity between two data points, introducing non-linearity.

Selection Criteria

Useful for certain types of neural network kernels or when data distribution suggests its shape.

Impact on Model Performance

Similar to sigmoid but can offer different modeling capabilities depending on data distribution.

Definition

Inspired by the analysis of the variance statistical model, this kernel function is designed to capture interactions between features.

Selection Criteria

Applied in complex datasets where interactions between features are important.

Impact on Model Performance

Can significantly increase the model’s ability to capture feature interactions, but may increase computational complexity.

Definition

Measures the divergence between two histograms and is particularly useful in computer vision tasks.

Selection Criteria

Preferred for tasks involving histogram-based features, such as texture classification.

Impact on Model Performance

Effective in capturing differences in distributions, particularly for image data.

Kernel Trick

The kernel trick is a technique in machine learning that allows algorithms to operate in a high-dimensional space without explicitly performing the computational-heavy process of mapping data to that space.

It takes advantage of the fact that many machine learning algorithms, including SVMs and PCAs, require only the dot product between data points to function.

The kernel trick uses a kernel function to compute this dot product as if the data were in the higher-dimensional space, even though the data itself remains in its original form.

Support Vector Machines (SVM)

Support Vector Machines are a type of supervised machine learning algorithm that is used for both classification and regression tasks. They work by finding the hyperplane that best divides a dataset into classes, in the case of classification, or fits the data, in the case of regression.

SVMs inherently operate linearly, which means they try to find the straight line (or hyperplane in higher dimensions) that best separates data points into different categories.

But, many real-world datasets are not linearly separable. This is where kernel methods come into play.

By applying a kernel function, SVMs can project the original data into a higher-dimensional space where it becomes linearly separable. This is done implicitly by the kernel trick, which allows SVMs to find a separating hyperplane in the transformed space without the computational burden of the transformation.

Here are some use cases for SVMs:

Text ClassificationImage RecognitionBioinformaticsCustomer Segmentation

SVMs, coupled with kernel methods, are widely used for categorizing text, such as spam detection in emails. The high dimensionality of text data makes linear separation challenging in the original space, but kernel methods facilitate this process.

In image recognition tasks, SVMs can classify images by features extracted from them. Kernel methods allow these features to be mapped into a space where images of different categories are more distinctly separable.

For example, classifying proteins or genes into different groups based on their sequence information. Kernel methods enable SVMs to deal with the complex patterns found in biological data.

Identifying different customer groups based on purchasing behavior and preferences. Kernel methods help in mapping customer data into a space where clusters become more apparent, aiding in segmentation.

Types of Kernel Method in Machine Learning

Kernel methods rely on kernel functions to project data into higher-dimensional spaces where it becomes easier for algorithms to classify, cluster, or regress.

Linear KernelsNon-Linear Kernels

A linear kernel is the simplest form of kernel function. It does not involve any transformation to a higher-dimensional space. It’s suitable for data that is already linearly separable in its original space, where the goal is to find a straight line (or hyperplane in multi-dimensional spaces) that can separate the classes. The main advantage of linear kernels is their computational efficiency, making them good for large datasets with a linear relationship between variables.

Non-linear kernels transform the data into a higher-dimensional space, making it possible to deal with data that is not linearly separable. This category has several types of kernels, each with its unique way of mapping the input data. Non-linear kernels are more computationally intensive than linear ones but are necessary for handling complex patterns and relationships within the data.

The popular kernel functions include polynomial, radial basis function, and sigmoid, which we went into great detail in the previous table.

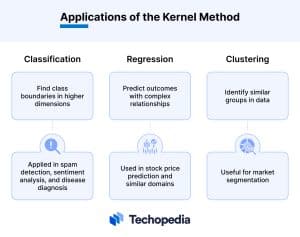

Applications of the Kernel Method

Applications of the Kernel Method

Classification: In classification tasks, kernel methods are used to find the boundary that separates different classes within the data. This is useful in scenarios where the classes are not linearly separable in the original feature space. Kernel methods project the data into a higher-dimensional space where these classes can be more easily differentiated. Applications include spam detection, sentiment analysis, and disease diagnosis.

Regression: Kernel methods are also applied in regression to predict continuous outcomes based on input variables. By mapping input data into higher-dimensional spaces, kernel methods allow for more complex relationships between the input features and the target variable to be captured. This approach is useful in fields like stock price prediction, where the relationship between market factors and prices can be highly nonlinear.

Clustering: In clustering tasks, kernel methods help identify groups within the data that share similar characteristics, even if these groups are not linearly separable in the input space. This is good for market segmentation, where businesses aim to identify distinct customer groups based on purchasing behavior or preferences.

Kernel Method Examples

Handwriting RecognitionFacial Recognition SystemsPredicting Protein StructuresFinancial Market Prediction

Description

Utilizing SVM with RBF kernels to recognize handwritten characters.

Impact

Improved accuracy in postal code sorting and converting handwritten notes into typed text.

Description

Applying kernel PCA for feature extraction and SVMs for classification in facial recognition.

Impact

Enhanced security and identification processes with high accuracy under varying conditions.

Description

Kernel methods help in predicting protein structures from amino acid sequences, capturing complex, non-linear patterns.

Impact

Advanced drug discovery and understanding of genetic diseases by accurately predicting protein folding patterns.

Description

Kernel-based regression models predict stock market trends and volatility, incorporating non-linear economic indicators and sentiment analysis.

Impact

Improved predictive models for investment strategies and risk management in the financial sector.

Pros and Cons of the Kernel Method

Kernel methods are a great tool in machine learning, but like any technique, they also come with some limitations.

Pros

  • Flexibility in handling non-linear data
  • High accuracy
  • Applicability to various domains

Cons

  • Computational complexity
  • Overfitting risk
  • Parameter sensitivity

The Bottom Line

Kernel methods are a major tool in machine learning for tackling non-linear problems, allowing algorithms to uncover complex patterns across various domains. They are valuable for their versatility in applications ranging from image recognition to financial modeling, where traditional linear models fall short.

Despite their advantages, the use of kernel methods comes with challenges, such as computational demands and the risk of overfitting, making a careful choice of kernel functions and parameter tuning necessary.

FAQs

What is the Kernel Method in simple terms?

How does the kernel trick work?

What are the benefits of using a kernel method?

What are some common kernel functions?
