What is Default Gateway?
A default gateway is a device – usually a router – that connects your local network to the outside world, like the Internet or another network. When your computer or phone needs to talk to a device outside of your home or office network, it sends that data to the default gateway, which then figures out where it needs to go and sends it on its way.
In simpler terms, the default gateway is your network’s “exit point” for getting information to and from places outside of your local setup. Without it, your devices would only be able to talk to each other, and you wouldn’t be able to reach anything on the Internet.
Key Takeaways
- A default gateway routes traffic from your local network to the Internet or other external networks.
- It operates at Layer 3 (Network Layer) of the OSI model, handling IP routing and traffic management.
- Common private IP address ranges for default gateways include 192.168.1.1 for home networks and 10.0.0.1 for corporate networks.
- Troubleshooting gateway issues often involves checking IP settings, DNS configurations, and using tools like ping and traceroute.
- Keeping your default gateway updated and properly configured ensures smooth network performance and security.
- Show Full Guide
How Default Gateway Works
A default gateway is like the traffic director for your network. When your computer or phone needs to send data somewhere outside your home or office network, it sends it to the default gateway first. The gateway figures out where that data needs to go – like a website or another network – and forwards it along.
Inside your network, devices can talk to each other directly using IP addresses. But when you’re trying to reach something outside, like a website, the gateway steps in and handles the job. Usually, the default gateway is part of your router, which connects your network to the Internet, making sure everything flows smoothly between your devices and the outside world.
How Traffic Moves Through a Default Gateway
When data needs to leave your network and head out to the Internet, it goes through a pretty straightforward process.
Here’s a breakdown of how it works:
Your device sends data
Let’s say you’re trying to visit a website. Your computer sends out small chunks of data called “packets” that include the address of the website you want to reach.Packets hit the default gateway
Since the website isn’t on your local network, those packets get sent to the default gateway.Gateway forwards the packets
The default gateway looks at where the packets need to go and sends them out to the Internet, directing them along the right path.Packets travel to their destination
Once the packets leave your network, they pass through various routers and servers until they reach the website’s server.Response comes back
The website’s server sends packets back to you, containing the data you requested (like the content of the website). These packets follow the same route in reverse.Your device receives the data
The default gateway picks up the incoming packets and delivers them back to your device, completing the cycle.
For example, when you visit a website, your computer sends data to the default gateway, which then passes it along to the Internet. The website responds, and the data makes its way back to your device through the same path. This all happens really fast.
Default Gateway Specifications
A default gateway handles key tasks like IP routing, network address translation (NAT), and sometimes firewall functions. It uses private IP addresses from ranges like:
- 192.168.0.1 to 192.168.255.254
- 10.0.0.1 to 10.255.255.254
- 172.16.0.1 to 172.31.255.254
The default gateway is usually built into a router, which needs enough memory and processing power to handle network traffic. It must also support modern protocols like IPv4 and IPv6.
Client IP vs. Gateway IP
The client IP is used for local communication. When a device needs to send data outside the network, it uses the gateway IP to route the traffic.
Client IP
- IP address assigned to a device on the local network. Identifies the device within the network.
- Used for communication between devices on the local network.
- Can be static (manually set) or dynamic (assigned by Dynamic Host Configuration Protocol (DHCP))
- Example: 192.168.1.15
Gateway IP
- IP address assigned to the default gateway that routes traffic to external networks.
- Directs traffic from the local network to external destinations.
- Typically static, though can be dynamic in some cases.
- Example: 192.168.1.1
Default Gateway and the OSI Networking Model
The default gateway works at Layer 3 (the Network Layer) of the OSI model, also known as the Network Layer. This is the layer where routing happens.
The gateway’s job here is to figure out the best path for data to travel when it’s leaving your local network and heading to an external one. Basically, it makes sure your data reaches the right destination outside your network.

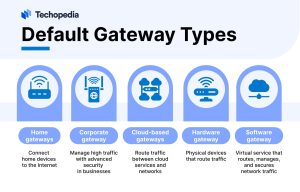

Types of Default Gateway
Default gateways come in different forms depending on the network setup:
- Home gateways: Typically found in routers provided by Internet service providers. They connect household devices to the Internet.
- Corporate gateways: Used in business networks to handle larger amounts of traffic and often have advanced security and management features.
- Cloud-based gateways: Virtual gateways used in cloud environments to route traffic between cloud services and external networks.
There are also hardware and software gateways. A hardware gateway is a physical device while a software gateway is a virtual service that performs the same routing tasks.
Troubleshooting Default Gateway Connectivity
Here are some common default gateway issues:
Some quick tools to help:
- Ping: See if your device can reach the gateway.
- Traceroute: Check the path your data is taking to its destination.
- ipconfig/ifconfig: Check and reset your IP settings.
These tools and fixes usually get things back up and running.
Best Practices for Default Gateways
For best performance and security, configure your default gateway with these tips in mind:
- Configuration: Use strong passwords, enable firewalls, and properly set up IP addresses and routing for smooth traffic flow.
- Redundancy: Set up a backup gateway or load balancing to ensure uninterrupted connectivity.
- Updates and monitoring: Regularly update firmware and monitor traffic for any issues or unusual activity.
Default Gateway Examples
In home networks, the default gateway is typically the router provided by your Internet service provider. It has an IP address like 192.168.1.1 and connects all your devices – phones, laptops, and smart TVs – to the Internet.
In corporate networks, the default gateway is often a more advanced router or firewall that manages traffic for multiple subnets and may include security features. It handles larger amounts of data and often has a static IP address like 10.0.0.1 to manage internal and external traffic.
In both cases, the gateway directs traffic from devices to the Internet or other networks
The Bottom Line
The simple default gateway definition is what allows your devices to connect to the Internet and other networks. Without it, your network would be cut off from the outside world. Keeping it properly configured and secure is needed for everything to work smoothly. It’s one of those things you don’t notice until it stops working, but it’s key to keeping your network up and running.
