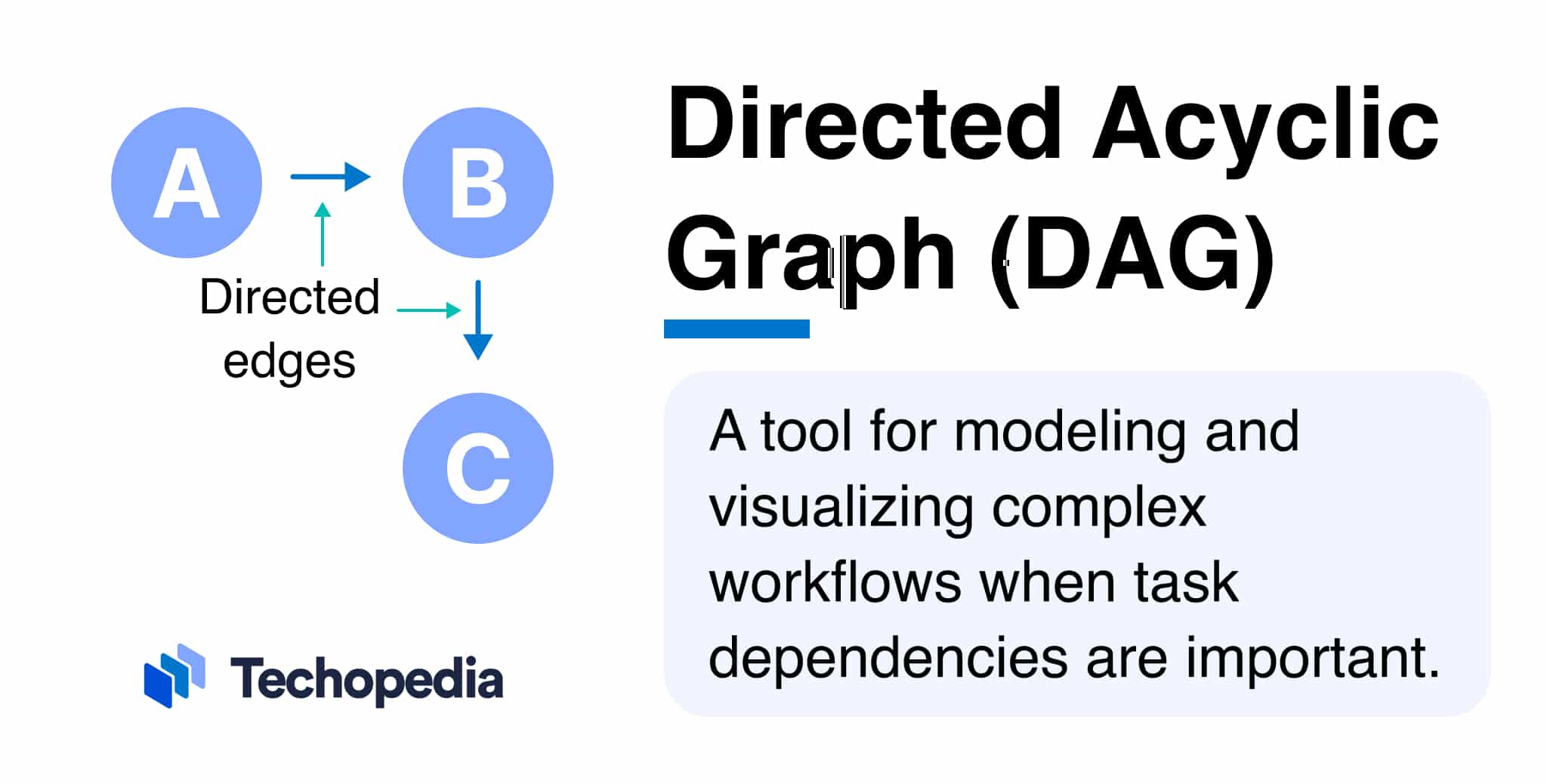

## What is Directed Acyclic Graph (DAG)?

A directed acyclic graph (DAG) is a tool for modeling and visualizing complex workflows when task dependencies are important. This type of dependency graph can be used to identify which tasks have to be completed before others can start, which tasks can be performed at the same time, and which tasks could be broken down into subtasks to optimize workflow.

## Key Takeaways

• Directed acyclic graphs provide a structured way for people and software to understand and manage complex workflows that have dependencies.
• DAGs map which tasks need to be completed before others can start.
• In project management, directed acyclic graphs are used to plan and schedule work.
• In machine learning, DAGs are used to map neural networks so they can be optimized.
• Some cryptocurrencies use DAG-based ledgers as an alternative to traditional blockchains.

## Features of Directed Acyclic Graph

In order to be considered a DAG, a graph needs to have directed edges that can be topologically ordered so all dependencies are satisfied, and no task can depend on itself or create an infinite loop.

Each node (vertex) in a DAG represents a task or step within a workflow, and each edge (arrow) represents a dependency.

The edges are called “directed” because there can only be a one-way relationship between tasks. The graph is called “acyclic” because tasks have to be executed sequentially or in parallel based on their prerequisite. (Acyclic literally means ‘without cycles’.)

## Directed Acyclic Graph Properties

In addition to directed edges and acyclic properties, DAG attributes include:

Topological order
Useful for scheduling tasks and resolving dependencies.
Reachability
Useful for understanding the impact of changes.
Transitivity
Useful for identifying implied relationships.
Indegree and outdegree
Helps determine the order in which nodes can be processed.
Transitive closure
Useful for determining whether one node is reachable from another.
Transitive reduction
Useful for creating a more concise and visually cleaner representation of the DAG

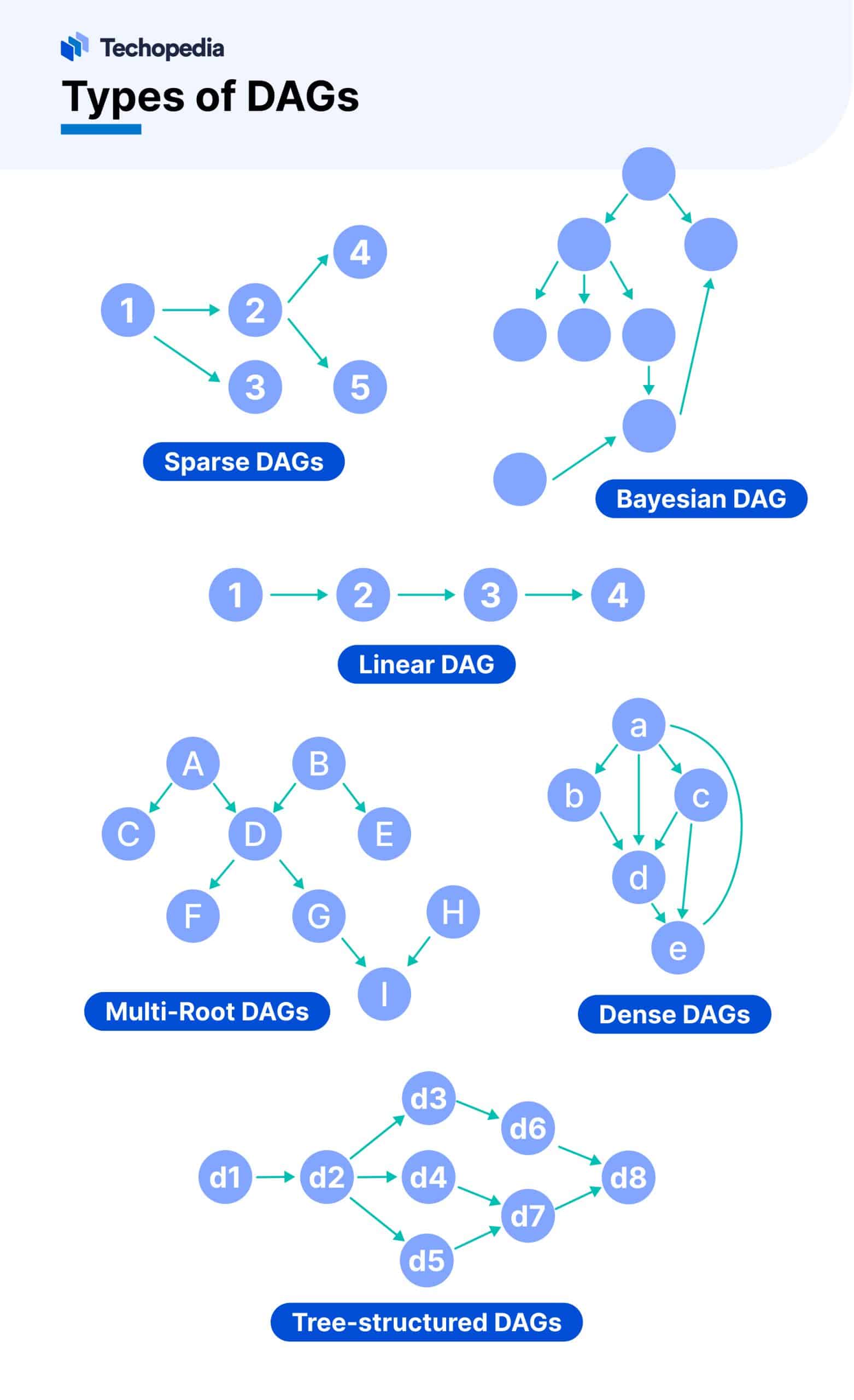

## Types of Directed Acyclic Graphs

DAGs can be categorized based on their structure and purpose. Here are some examples of different types of directed acyclic graphs.

Sparse DAGs have more nodes than edges.

Dense DAGs have more edges than nodes.

Linear DAG nodes create a chain.

Multi-Root DAGs have multiple root nodes, each of which can be a starting point.

Bayesian DAG nodes represent random variables, and the directed edges represent conditional dependencies.

Tree-structured DAGs are hierarchical, and there is a single path from the root to any node.

It’s important to note that the same DAG can often fit into multiple categories based on the specific context of its application. For example, a DAG used in artificial intelligence (AI) to optimize a real-time data processing pipeline might be considered a multi-root DAG, but it could also be classified as a hierarchical or sparse/dense DAG, depending on its specific structure.

## Why Are Directed Acyclic Graphs Useful?

While DAGs are often implemented and visualized using software tools, the concept of a DAG can be represented and analyzed mentally, visually, or mathematically. The versatility makes this practical implementation of graph theory useful across a wide range of domains, from computer science to project management.

## DAGs in Batch Processing

In batch processing, DAGs can be used to ensure data integrity and prevent errors caused by out-of-order execution.

Popular tools that leverage DAGs for batch processing include:

Apache Airflow
Allows programmers and software engineers to define, schedule, and monitor DAG-based workflows.
Luigi
A Python module for building complex data processing workflows that execute similar tasks together in a group.
Kedro
Uses DAGs to structure pipelines specifically designed for data science and machine learning (ML) projects.
Kubeflow
A toolkit that can be used to orchestrate complicated batch processing workflows running on Kubernetes.

## How to Draw a Directed Acyclic Graph

To draw a directed acyclic graph, start by putting each workflow element in a circle and then draw arrows to capture the directionality of dependencies. Then arrange the nodes visually so that the arrows generally flow in one direction. This will help make the order of mathematical and logical operations easier to understand.

## How to Verify a Directed Graph is Acyclic

The absence of cycles is the defining characteristic of a directed graph that is acyclic. If you want to know how to check if a large, complex directed graph is acyclic, you can use a topological sort algorithm or a depth-first search (DFS) algorithm.

## Popular Use Cases for Directed Acyclic Graphs

Computer scienceData engineering & scienceBiology & bioinformaticsLogistics & supply chainFinanceProject Management

Task scheduling: Ensure correct execution order, handle dependencies, and enable parallel execution where possible.

Compiler optimization: Map code dependencies and identify opportunities for executing code faster and more efficiently.

Version control systems: Track changes in code repositories.
Machine learning and AI: Optimize neural network architectures and algorithms.

Data pipelines: Optimize data processing and data pre-processing tasks.

Evolutionary trees: Map the relationships between species or genes over time.

Supply chain management (SCM): Optimize inventory levels, transportation routes, and resource allocation.

Transaction processing: Optimize clearing, settlement, reconciliation, and compliance processes.

Workflow management: Visualize critical workflow paths and identify potential bottlenecks.

## DAG Applications in Cryptocurrency

Some cryptocurrencies are using DAGs in place of blockchains to validate and record transactions. For example, IOTA uses a unique DAG structure called the Tangle, where each new transaction directly validates two previous transactions.

Because a DAG structure allows multiple transactions to be processed simultaneously, DAG-based cryptocurrencies can potentially have higher throughput, faster confirmation times, and lower transaction fees than the best blockchain-based cryptocurrencies.

## DAGs Pros and Cons

DAGs are a valuable tool for modeling, analyzing, and managing complex workflows, but it’s important to be aware of the challenges as well as the benefits.

When errors or unexpected behaviors occur in a complex DAG that has thousands of nodes, understanding the root cause can be like looking for a needle in a haystack.

Pros
• Provide a structured, efficient, and flexible way to represent complex data flows and dependencies
• Useful tools for identifying what tasks can be executed concurrently
• Can be scaled to represent small, simple workflows as well as large, complex systems
Cons
• Since DAGs can’t include cyclic dependencies, they are not suitable for workflows that require feedback loops or use iterative processes
• Debugging and troubleshooting complex DAGs can be challenging
• Designing and interpreting DAGs can have a steep learning curve when stakeholders are unfamiliar with graph theory or dependency modeling

## The Bottom Line

While the exact wording of directed acyclic graph definitions may vary depending on their structure and purpose, they all emphasize the key properties of directionality and the absence of cycles.
