What is a Memory Module?

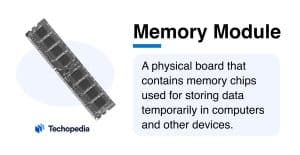

A memory module, also known as a Random Access Memory (RAM) stick, is a computing component that provides fast temporary data storage for the central processing unit (CPU) to access and process current tasks.

Advertisements

It consists of a series of dynamic random-access memory (DRAM) chips mounted on a printed circuit board (PCB). These chips are where the actual storage of data occurs, with the PCB facilitating the connection between the memory chips and the motherboard of a computer or other electronic devices.

Memory modules are designed to fit into specific slots on the motherboard, keeping a secure electrical connection that allows the CPU to read from and write to the memory chips at high speeds. This connection is important for the execution of applications and the operation of the operating system (OS), as it provides the necessary bandwidth for data to flow between the CPU and the memory.

Memory modules hold the data and instructions that a CPU needs in real time. When a computer is running, every piece of information that needs to be actively accessed or manipulated – from the operating system’s background tasks to user-initiated applications like web browsers and word processors – is stored in these modules.

The speed at which the CPU can access this data directly impacts the device’s overall performance. Faster memory speeds allow for quicker data processing, leading to smoother operation and the ability to handle more tasks simultaneously.

Also, memory modules are categorized by their capacity, which determines how much data they can store at one time, and their speed, which affects how quickly the CPU can access this data.

Higher capacity modules allow more data to be stored and accessed, which is good for running multiple or resource-intensive applications, while higher speed modules reduce the time it takes for the CPU to access this data, contributing to overall system responsiveness.

Techopedia Explains the Memory Module Meaning

Techopedia Explains the Memory Module Meaning

The simple memory module definition is a detachable electronic board fitted with memory chips, used for storing data temporarily in computing devices. This setup allows the device’s processor to quickly access necessary data and instructions for performing tasks.

That’s the simple memory module meaning. They have changed from the manual or directly built memory configurations in early computers. They’ve transitioned through various technologies like magnetic core memory, DRAM, and static random access memory (SRAM).

Each advancement brought improvements in speed, capacity, and energy efficiency thanks to the many improvements in semiconductor technology.

The upgrade from a single Inline memory module (SIMM) to a dual inline memory module (DIMM) notably improved data transfer capabilities, aligning memory performance with the accelerating demands of modern computing applications.

How Memory Modules Work

Memory modules function as the intermediary storage that facilitates the swift flow of data between the computer’s CPU and the long-term storage devices. But how do they work?

Components of a Memory Module

To understand how a memory module works, you first need to know the components that it consists of:

Memory Chips
These chips are the heart of the module, where data is actually stored. They are typically arranged in a series to increase the module’s overall storage capacity.

Capacitors and Resistors
These electrical components help regulate the flow of electricity to the memory chips, keeping a stable operation and preventing data corruption.

Connectors
Located on the edge of the module, these metallic contacts plug into the corresponding slots on the motherboard, establishing a physical and electrical connection that allows data to be transferred to and from the CPU.

From Data Storage to Retrieval

These are the steps involved in the process of storing and retrieving data on a memory module:

Data Storage
The data arrives at the memory module and is stored in the memory chips. Each bit of data is stored in a specific location or “cell” within the chips.

Accessing Data
As the CPU processes tasks, it continuously requests and retrieves data from the memory module. The speed of this data retrieval is important for the overall performance of the computer.
Writing Back
Any changes made to the data while it’s in the memory module are written back to the chips to make sure that the most current version of the data is available for the CPU.

Types of Memory Modules

Memory modules come in various types, each designed with specific features, capacities, and compatibility standards. The most common types include DIMMs and SIMMs, but there are others.

DIMMs (Dual In-line Memory Modules)

DIMMs are the standard for modern computers, notable for their separate electrical contacts on each side of the module. This design allows for wider data paths compared to their predecessors.

DIMMs are commonly used in desktops, laptops, and servers. Compatibility depends on the motherboard, with specific slots for DIMMs and variations like double data rate (DDR), DDR2, DDR3, DDR4, and the latest DDR5, each offering improvements in speed and efficiency over the previous generation.

SIMMs (Single In-line Memory Modules)

SIMMs, an older type of memory module, have identical contacts on both sides of the module, effectively mirroring each other. They were prevalent in computers from the late 1980s to the late 1990s.

SIMMs come in two main varieties: 30-pin and 72-pin, with the latter able to carry more data. Due to their limited capacity and slower speeds, SIMMs are now mostly found in older or vintage computing equipment and are not compatible with modern computing systems that require higher performance and capacities.

SO-DIMMs (Small Outline DIMMs) and MicroDIMMs

SO-DIMMs and MicroDIMMs are smaller versions of DIMMs designed for use in compact devices such as laptops, small form factor (SFF) PCs, and embedded systems.

SO-DIMMs are narrower than regular DIMMs. MicroDIMMs are even smaller than SO-DIMMs and are used in very compact devices. Both types follow the DDR standard and its iterations but are distinguished by their physical size, with specific compatibility depending on the device’s motherboard design.

Memory Modules vs. RAM

Memory modules and RAM (Random Access Memory) are terms often, incorrectly, used interchangeably in the context of computing. They refer to different aspects of computer memory.

RAM is a type of computer memory used for storing data temporarily while a computer is running. It allows data to be read or written in nearly the same amount of time irrespective of the physical location within the memory.

RAM is the “working memory” that holds the operating system, application programs, and data currently in use so that the device’s CPU can quickly access and process them.

Memory Modules are the physical hardware that houses RAM chips. A memory module is a printed circuit board that contains one or more RAM chips, along with other components that help the RAM communicate with the CPU.

Memory modules are inserted into specific slots on the motherboard of a computer, allowing the RAM chips on the modules to function within the system.

Here’s a side-by-side comparison:

What it isFunctionLocationUpgradabilityTypes

Memory Module: A physical circuit board that houses RAM chips.

RAM: The temporary storage space used by the CPU to process data.

Memory Module: To provide a physical medium through which RAM operates.

RAM: To store data that the CPU needs quick access to while performing tasks.

Memory Module: Inserted into slots on the motherboard.

RAM: Exists as chips on a memory module.

Memory Module: Can be upgraded or replaced by inserting new modules.

RAM: Capacity is increased by upgrading to modules with more or faster RAM.

Memory Module: DIMMs, SIMMs, SO-DIMMs, etc., based on physical size and design.

RAM: DDR, DDR2, DDR3, DDR4, DDR5, etc., based on speed and technology generation.

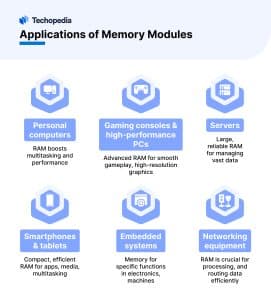

Applications and Use Cases of Memory Modules

Applications and Use Cases of Memory Modules

Personal Computers

In desktops and laptops, memory modules play a part in determining the system’s ability to run multiple applications simultaneously and handle complex tasks.

For example, upgrading the RAM in a personal computer can boost its performance, making it faster and more responsive when browsing the internet, editing videos, or running demanding software applications.

Gaming Consoles and High-Performance PCs

Gaming consoles and high-performance PCs rely on advanced memory modules to ensure smooth gameplay and support high-resolution graphics.

In these systems, faster and higher-capacity RAM can improve loading times, and game textures, and allow for more sophisticated game mechanics.

Servers

Servers, which manage vast amounts of data and handle numerous simultaneous requests, require memory modules with large capacities and high reliability.

In this context, RAM is important for database management, virtualization, and running complex applications that support businesses and organizations’ IT infrastructures.

Smartphones and Tablets

Memory modules in smartphones and tablets are designed for power efficiency and compact size. They allow these devices to run apps, process photos and videos, and support multitasking within the constraints of battery life and physical space.

Embedded Systems

Embedded systems, such as those found in automotive electronics, industrial machines, and home appliances, use memory modules to perform specific, pre-programmed functions.

Networking Equipment

In networking equipment like routers and switches, memory modules are needed for processing and routing large volumes of data across the Internet and local networks.

These devices require RAM to store the firmware and buffer data as it’s being transmitted, ensuring efficient network communication.

6 Causes for Memory Modules to Fail

Memory modules can fail due to various reasons, affecting the performance and reliability of computing systems. Identifying common causes of failure can help in preventing potential issues and troubleshooting existing problems.

Physical Damage
Mishandling during installation or maintenance can cause physical damage to the memory module, leading to failure. This includes bending, breaking, or damaging the PCB or the memory chips.

Overheating
Excessive heat can degrade the memory module’s performance over time or cause immediate failure. Inadequate cooling or high ambient temperatures are often to blame.

Electrostatic Discharge (ESD)
Memory modules are sensitive to static electricity. Improper handling without grounding can introduce an electrostatic discharge that damages the memory chips.
Manufacturing Defects

Although rare due to stringent quality control, some memory modules might come with manufacturing defects that can lead to premature failure.

Power Surges

Unexpected power surges can damage memory modules by exceeding the voltage tolerance of the components on the PCB.

Dust and Debris

Accumulation of dust and debris in the memory slots can interfere with the electrical connection between the memory module and the motherboard, causing errors or failure.

Upgrading and Replacing Memory Modules

You may want to upgrade or replace your memory module when:

  • Sluggish Performance: If your computer is slow when running multiple applications or processing large files, it might benefit from a memory upgrade.
  • Software Requirements: New software or operating systems (OS) with higher RAM requirements than your current setup can call for an upgrade.
  • Error Messages: Frequent errors related to memory or system crashes could indicate failing memory modules that need replacement.

Before purchasing new memory, verify what type (e.g., DDR4), size (e.g., 8GB), and speed (measured in MHz) are supported by your motherboard. This information is typically found in your system’s manual or the motherboard manufacturer’s website.

Determine how many memory slots your computer has and the maximum memory capacity it supports. Decide whether to add new modules alongside existing ones or replace them entirely for more capacity or speed.

Opt for memory modules from well-known and reliable brands to ensure quality and compatibility.

The actual installation of the memory modules will significantly vary between products. We’ll provide a very basic guide, but be sure to consult with the manufacturer for exact instructions.

  1. Power Down and Unplug

    Make sure your device is turned off and unplugged from any power source.
  2. Ground Yourself

    Use an anti-static wristband or ground yourself by touching a metal part of the product’s case to prevent electrostatic discharge.
  3. Insert the Memory Module

    Open the product case and locate the memory slots on the motherboard. If you’re adding to existing memory, use slots of the same color. Align the notch on the memory module with the ridge in the slot and press down firmly until the side clips snap into place.
  4. Test the Upgrade

    After installing, power on your computer and check the system information to make sure the new memory is recognized. Running a memory test can also help confirm the upgrade is functioning as expected.

The Bottom Line

Memory modules are necessary for computing, providing the fast, temporary storage needed for CPUs to process data efficiently. Understanding these components, from the various types like DIMMs and SIMMs to considerations for upgrading and compatibility, is important for optimizing device performance.
